Low Pressure Single Stage Regulators LV2302 Series








File Name: REGO-LV2302
File Size: 1.10 MB PDF
REGO LV2302


  Features

  • Compact size with large capacity rating.
  • Equipped with integral relief valve.
  • Unique bonnet vent profile minimizes vent freeze over when properly installed.
  • Built in pressure tap has plugged 1/8" F.NPT outlet.
  • Large diaphragm provides better regulation and lower lock-up.
  • Classic gold finish.




Application



A compact, sturdy regulator incorporating many of the quality features found in larger domestic regulators. Ideal for outdoor LP-Gas grills. The regulator reduces cylinder pressure down to burner pressure, normally 11" w.c. It is intended for use on small portable appliances that use 100,000 BTU's/hr. or less. It may not be used on fixed pipe systems per NFPA 58, 1995 edition.

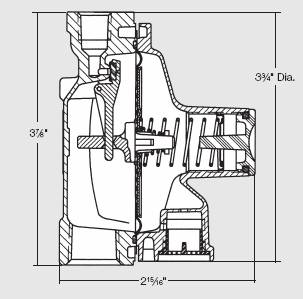

  RegO LV2302 Series
