Rochester Level Gauge 6300 Series |
|
|
|
|
| |
|
|
| |
File Name:
ROCHESTER-6300 |
File Size: 962 KB  |
|
 |
|
| |
|
|
| |
 Application
|
|
| |
The 6300 series, Magnetel gauges are used to indicate level of liquefied gases such as LPG, Ammonia, etc.., petrochemical and chemical liquids.
The Magnetel gauges are designed to be used on tanks with diameter up to 5000mm and pressure up to 25 bar at temperature ¡V 20¢XC to + 65¢XC (40 bar with Stainless Steel head).
|
|
| |
|
|
| |
Mounting Position |
|
| |
MOUNTING :
(8)mounting studs, size regarding the type of head
Head type |
Stud size |
Bolt O |
Alu Standard |
1/2"-13UNC or M12 |
89mm |
Stainless Steel |
1/2"-13UNC or M12 |
89mm |
ASA 300Lbs R.F.3" |
M20 |
168mm |
DIN 80 PN 25 |
M16 |
160mm |
Note: When ordering a straddle mounted magnetel add suffix X to model number

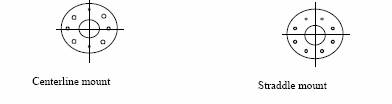

Centerline mount Straddle mount
MODEL NUMBER :
MODEL NUMBER |
MOUNTING POSITION |
DIAL SIZE |
6336- TRIM N¢X |
TOP |
100mm ( 4") |
6339- TRIM N¢X |
Horizontal or Angle |
100mm ( 4") |
6342- TRIM N¢X |
Horizontal or Angle |
200mm ( 8") |
6360- TRIM N¢X |
TOP |
200mm ( 8") |
 Top
|
|
| |
|
|
| |
Certification |
|
| |
Those gauges serie 6300 "Magnetel" are in accordance with European Directive PED 97/23/CE for LPG, ammonia for maximum pressure 25 bar and temperature ¡V20¢X to + 60¢XC CO2 for maximum pressure 40 bar and temperature ¡V40¢X to + 5¢XC
Others: on request after risk analysis.
They have been certified by APRAGAZ, notified body 0029, under n¢X 02/BE/329. |
|
| |
|
|
